September 7, 2017

    5G isn't just an incremental improvement over 4G — it's the next major evolution of mobile communication technology with performance improvements of several orders of magnitude over today's networks. 5G does not replace 4G, it simply enables a huge diversity of tasks that 4G cannot perform. 4G will continue to advance in parallel with 5G, as the network to support more routine tasks. 5G will enable services yet to be imagined, in a world where national economies are driven by sophisticated communications networks.

    Let's explore what 5G technology is, compare some of the characteristics of 4G and 5G, and look at the path to 5G deployment.

    What 5G Technology Is

    5G RF For Dummies®, Qorvo Special Edition
    • Enhanced Mobile Broadband (eMBB) requiring hundreds of megahertz (MHz) of channel bandwidth using new frequencies for mobile wireless — from 2.5 gigahertz (GHz) for 4G LTE Pro and 3.5GHz for 5G, to tens of gigahertz and beyond into the millimeter wave (mmWave) spectrum
    • Ultra efficient for streaming data, taking full advantage of carrier aggregation (CA) and massive multiple input/multiple output (MIMO)
    • Fixed wireless, giving more choices to get 20 gigabit per second (Gbps) connections to your home and business
    • Wireless infrastructure, using beam steering and high-power gallium nitride (GaN), ideally suited to adaptive-array steerable antennas
    • Low latency for real-time connections enabling autonomous vehicles and augmented reality/virtual reality (AR/VR)
    • Internet of Things (IoT) connecting more than a trillion devices to the Internet in the next ten years with extremely low data rates, battery life greater than ten years, and the longest possible communication range



    Comparing 4G and 5G

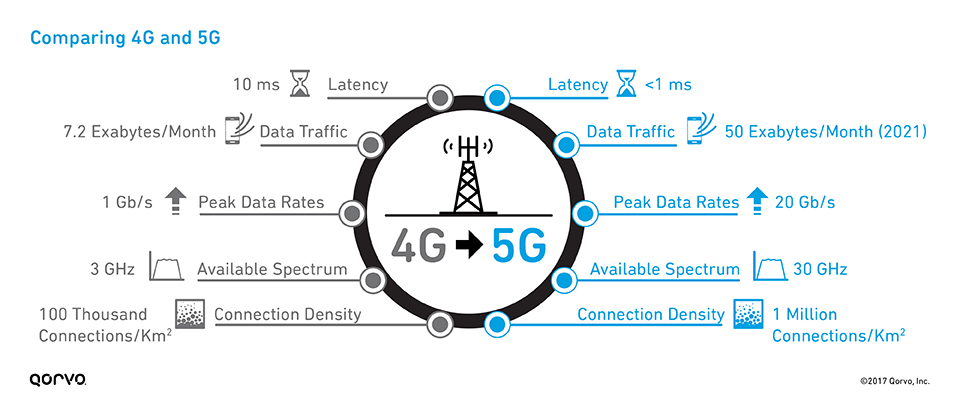

    The figure below provides a comparison of the performance characteristics and technical specifications of 4G and 5G technology.

    Comparing 4G and 5G



    The following table summarizes the major differences between 4G and 5G technology.

    4G (Today, Before Further Developments) 5G

    Latency

    10 ms

    Less than 1 ms

    Peak data rates

    1 Gbps

    20 Gbps

    Number of mobile connections

    8 billion (2016)

    11 billion (2021)

    Channel bandwidth

    20MHz

    200kHz (for Cat-NB1 IoT)

    100MHz below 6GHz

    400MHz above 6GHz

    Frequency band

    600MHz to 5.925 GHz

    600MHz–mmWave (for example, 28GHz, 39GHz, and onward to 80 GHz

    Uplink waveform

    Single-carrier frequency division multiple

    access (SC-FDMA)

    Option for cyclic prefix orthogonal frequency-division multiplexing (CP-OFDM)

    User Equipment (UE) transmitted power

    +23 decibel-milliwatts (dBm) except 2.5GHz time- division duplexing (TDD) Band 41 where +26dBm, HPUE is allowed

    IoT has a lower power-class option at +20dBm

    +26dBm for less than 6GHz 5G bands at and above 2.5GHz



    Currently, use cases are being defined, new radio access technologies are being developed, and carrier field trials are being conducted. The Third Generation Partnership Project (3GPP) standards body is harmonizing and globalizing these new ideas into a unified specification.

    By adopting LTE Advanced (LTE-A), carriers are making considerable progress toward the speed goals for 5G (see figure), but more work is required.

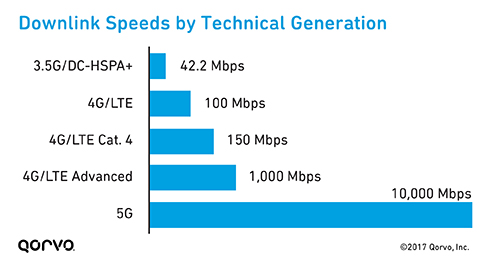

    Downlink Speeds by Technical Generation



    The Path to 5G Deployment

    Enhancing the mobile wireless experience is a step-by-step pathway for carriers, requiring further expansion and development of 4G and moving toward LTE-A technologies. Carriers are currently in the midst of developing software-defined networks (SDNs), heterogeneous networks (HetNets), and low power networks. Finally, in 2019 and beyond, global 5G rollouts and initial commercial releases will begin (see figure).

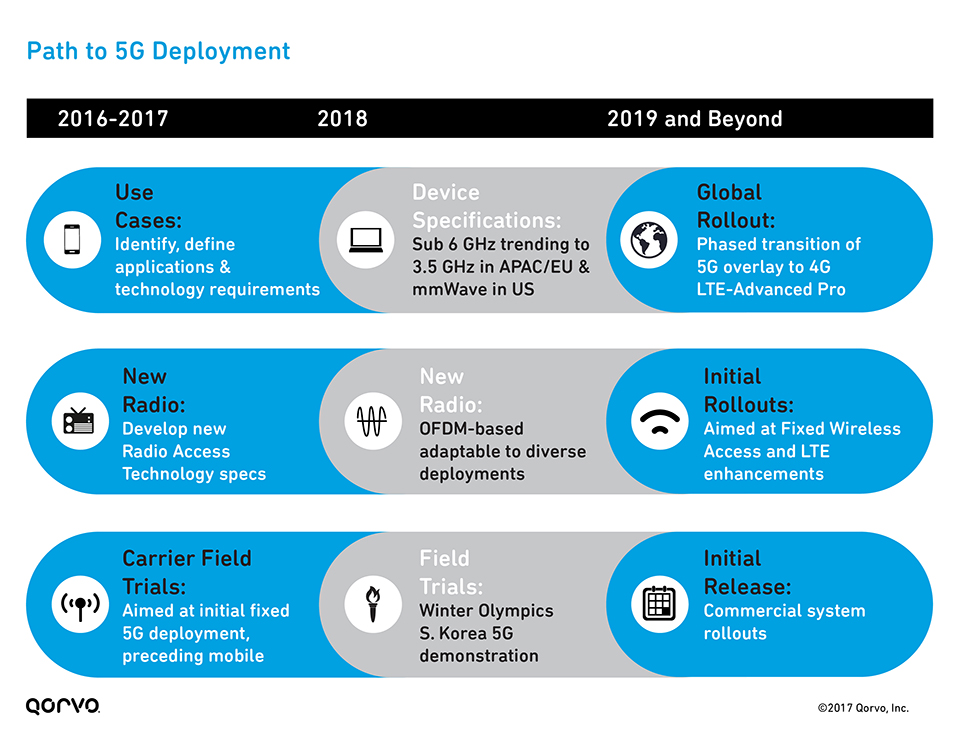

    Path to 5G Deployment



    Want more details about what's to come with 5G? Download a copy of our latest e-book, 5G RF For Dummies®.

    – Excerpted with permission from John Wiley & Sons, Inc., from 5G RF For Dummies.
