Spatium® SSPA
Solid-State Power Amplifiers

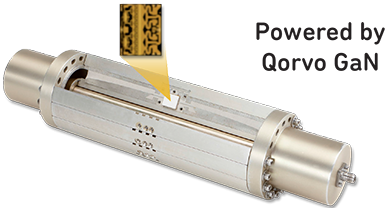

Qorvo's patented Spatium® RF power combining technology provides a wide band, highly reliable, efficient alternative for traveling wave tube amplifier (TWTA) replacements, for commercial and defense communications, radar, electronic warfare (EW) and many other applications. When state of the art solid state power amplification is required, the Spatium family of standard products is your best solution.
Spatium®: The Power Amplifier Technology of Choice
Spatium supports your EW mission capability
- Reliability and Availability
- Bandwidth
- Flexibility and Instant On
- Air & liquid cooling capability
- Military SWaP-CR
- Size, Weight, Power, Cost, Reliability - DOD technology readiness level - TRL 9
- Flight proven via successful mission operations - SSPA Repairability

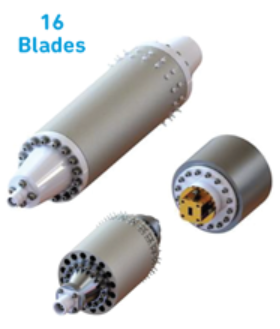

Single Spatium Capabilities
SSPA Performance & Bandwidth
| Frequency (GHz) | Power (Watts) |
|---|---|
| 2-18 | 150 |
| 2-18 | 300 |
| 8-11 | 700 |
| 13-16 | 700 |
| 18-40 | 100 |
| 27-31 | 200 |
| 32-38 | 150 |
| 34-36 | 300 |

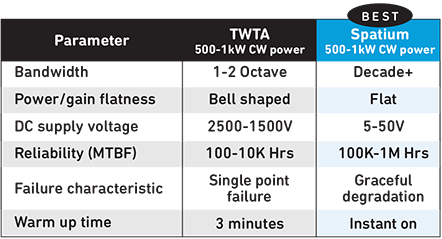

SWaP-CR capabilities makes Spatium the SSPA technology of choice
