    5G Array Calculator



    5G Application Options




    Key Array Details

    Key Parameters Array Specifications
    Qorvo IC: AWMF-0221
    Number of Elements: 64 elements (8 x 8)
    Voltage: 1.8 V
    Boresight P1dB EIRP per pol: 59.6 dBmi
    Array Rx NF: 4.5 dB
    Lattice (AZ/EL): 0.5/0.5 Lattice (d/λ)
    Scan Volume (AZ/EL): ±60°/±60°
    Boresight HPBW (AZ/EL): ±12.69°/±12.69°
    Polarization: Two Pol


    *Note: all values are estimates and are calculated at maximum operating frequency. Calculations do not include directivity reduction due to grating lobe appearance or performance reduction due to 20*log10(Frequency/Fmax). Assumes rectangular array.

    **Input fields are pre-populated with the initial array values. Gray items are not editable.

    Array Information
    EIRP Calculation
    EIS Calculation
    Array Size
    Array Beamwidth
    Grating Lobe Free Scan Volume

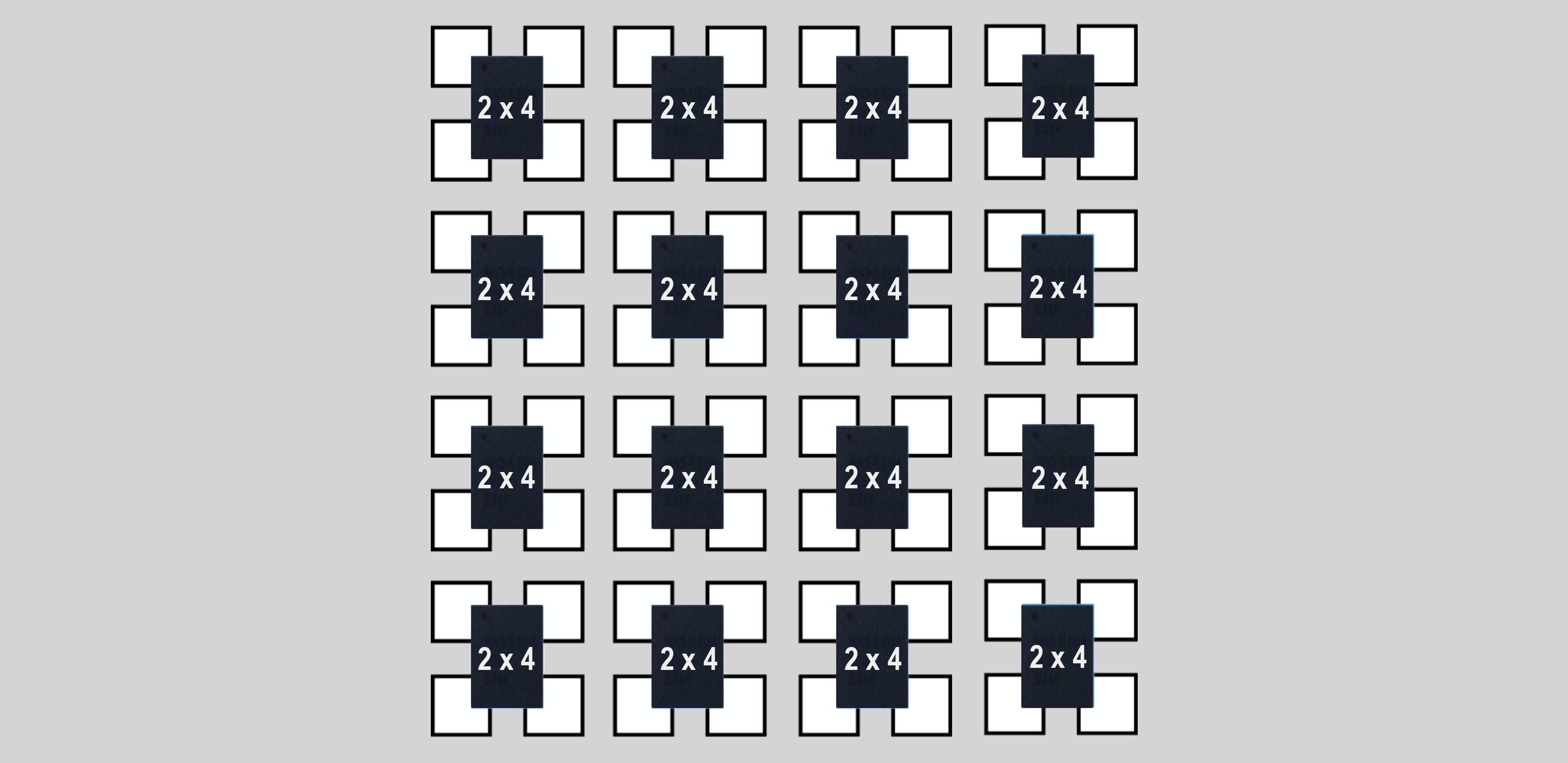

    Array Image
