Supercharge Your IoT Development with Qorvo’s New Design Calculators

 Blog_LEO SatCom_Part 2

Designing a reliable and energy-efficient IoT product requires deep RF understanding, communication protocol knowledge, careful component selection and rigorous performance validation. To streamline this process and empower engineers at every stage of development, Qorvo released three powerful PC-based calculators in early spring 2025. These tools—Crystal Procurement Tool, Energy Budget Calculator and Link Budget & Range Calculator—make it easier than ever to optimize crystal selection, predict battery life and evaluate RF link performance.

Let’s dive into what each calculator does and how it can enhance your next IoT design.

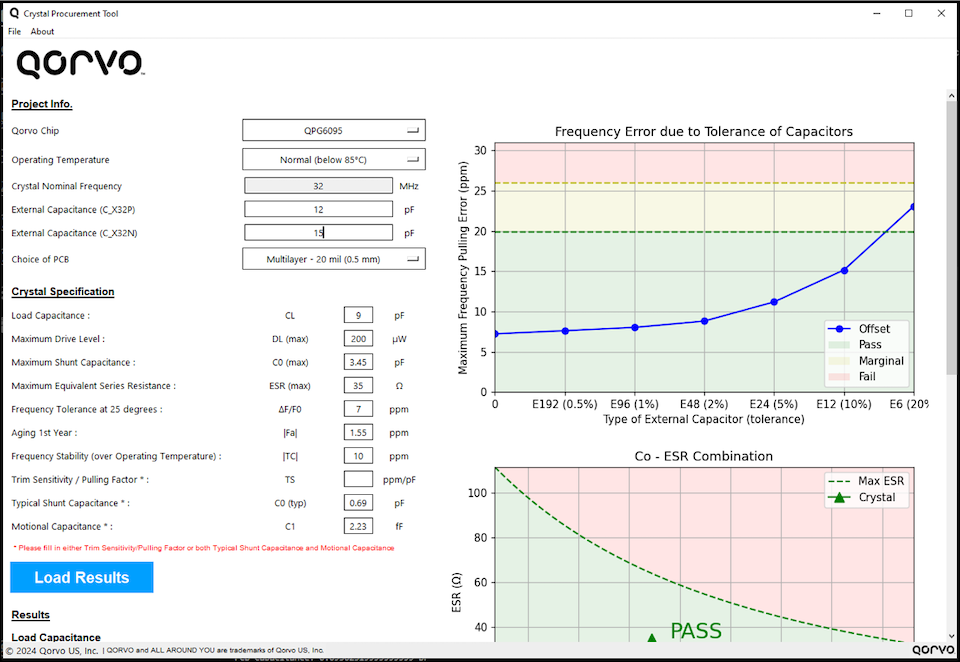

1. Crystal Procurement Tool: Ensure Stable Oscillation and Precise Frequency Offset

Selecting the right 32 MHz crystal is critical for ensuring your wireless device performs within specification. This tool checks if the crystal electrical parameters, as specified in the datasheet, can meet Qorvo procurement requirements. It calculates the (external) load capacitors and the test limits for finished goods production tests and, if needed, generates a frequency correction look-up table for up to 125°C applications. This tool saves design engineers time by helping them pick the optimum crystal for their design.

Key Benefits:

  • Validates crystal specs against Qorvo’s requirements.
  • Recommends optimal external load capacitors or internal switch settings.
  • Generates test limits for frequency offset verification.
  • Supports high-temperature correction for applications up to +125 °C.
  • With this tool, hardware designers can confidently select crystals that will maintain stability and accuracy across all operating conditions, including lifetime temperature variations.

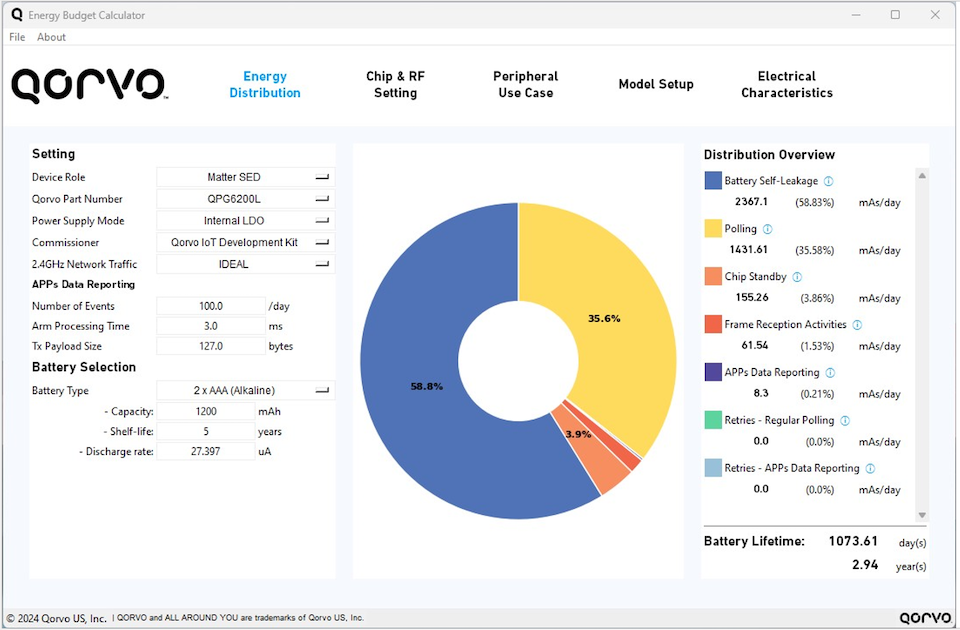

2. Energy Budget Calculator: Estimate and Optimize Battery Life

Battery life is one of the most critical metrics for IoT devices. The Energy Budget Calculator helps you forecast energy usage and lifetime under various wireless use cases, from Matter (over Thread)/Zigbee Sleepy End Devices to BLE peripherals and UWB initiators.

Key Benefits:

  • Supports multiple wireless protocols (IEEE802.15.4, BLE, UWB).Calculates average current and battery drain over time.Identifies the most power-hungry system events.Helps engineers design for longer battery life by modeling real-world usage.
  • By visualizing current profiles and total power consumption, developers can make smarter design tradeoffs and avoid premature battery failures

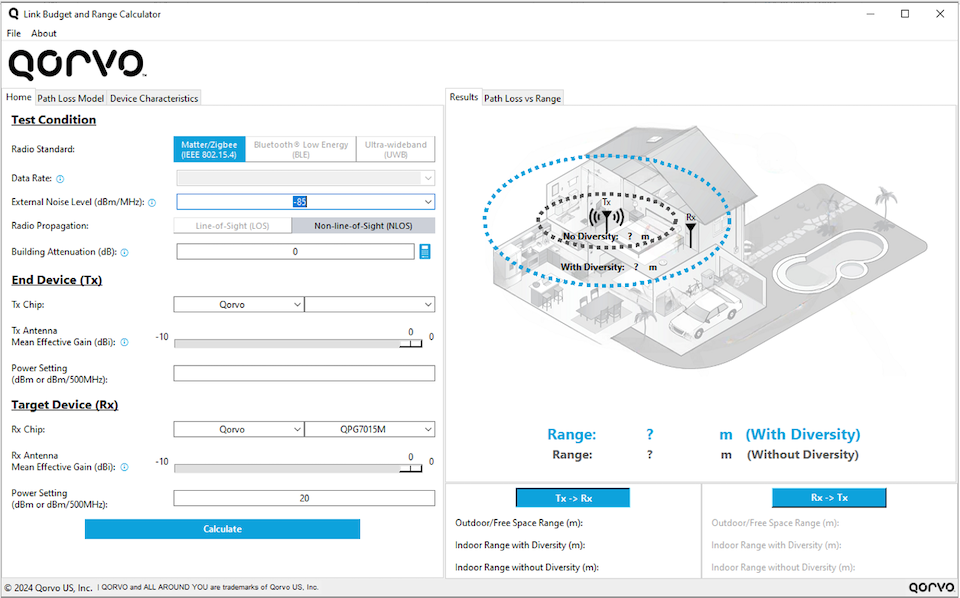

3. Link Budget & Range Calculator: Model Your RF Link and Maximize Performance

Understanding the limits of your wireless RF range and how to optimize them is crucial for reliable operation in diverse environments. This Link Budget & Range Calculator gives you an easy way to estimate RF range and link margin under various propagation models.

Key Benefits:

  • Supports Matter (over Thread)/Zigbee, BLE and UWB link budget calculations.Estimates RF range for both Line-of-Sight (LOS) and Non-Line-of-Sight (NLOS) scenarios.Demonstrates the benefits of Antenna Diversity and UWB Low Noise Amplifiers.Allows advanced tweaking of path loss parameters for custom scenarios.
  • Whether you’re designing for indoor, urban or long-range outdoor conditions, this tool helps you design with confidence



Get Started Today

All three calculators are free downloadable PC applications designed to give Qorvo IoT developers an edge. They are located on Qorvo’s Design Hub on the Interactive Tools & Calculators webpage. Whether you’re optimizing RF performance, estimating energy usage or selecting components that meet our strict specs, these tools can help you bring robust, efficient devices to market faster.

Need help or want to learn more? Reach out to Applications Support for expert assistance.

For more information on this and other Qorvo designs, please visit Qorvo.com or reach out to Technical Support.
